Scope of application:
widely applied in metallurgy, casting, mineral, chemical, medical, feed, construction and grain processing fields
.jpg)
.jpg)

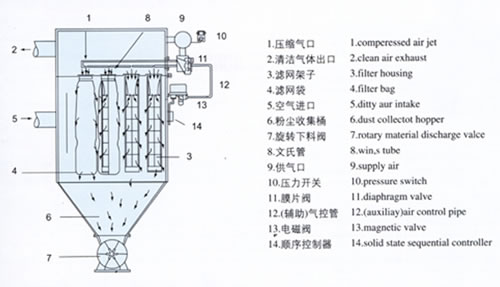

Structural representation:
.jpg)
Technical parameters:
| Index\Model |
MC24 |
MC36 |
MC48 |
MC60 |
MC72 |
MC84 |
MC96 |
MC120 |
| filtering area (m2) |
18 |
27 |
36 |
45 |
54 |
63 |
72 |
90 |
| number of filter bag |
24 |
36 |
48 |
60 |
72 |
84 |
96 |
120 |
| velocity of filtering(m/min) |
2-4 |
| blast capacity of filteringm3/min) |
2160-4300 |
3250-6480 |
4320-8630 |
5400-10800 |
6450-12900 |
7500-15100 |
8650-17300 |
10800 -20800 |
| maximum boundary dimensionmm |
length |
1025 |
1425 |
1820 |
2225 |
2625 |
3025 |
3585 |
4385 |
| wdith x height |
1678x3660 |
| cleaning installation |
quantity of pulse valve |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
| compressed airconsumptionm3/min |
0.07-0.03 |
0.11-0.40 |
0.15-0.50 |
0.18-0.60 |
0.22-0.60 |
0.25-0.90 |
0.29-0.90 |
0.37-0.90 |
| compressed airpressurekg/cm3 |
0.5-0.8 |

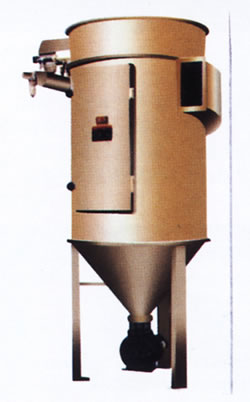

Pulsed jet cloth filter
